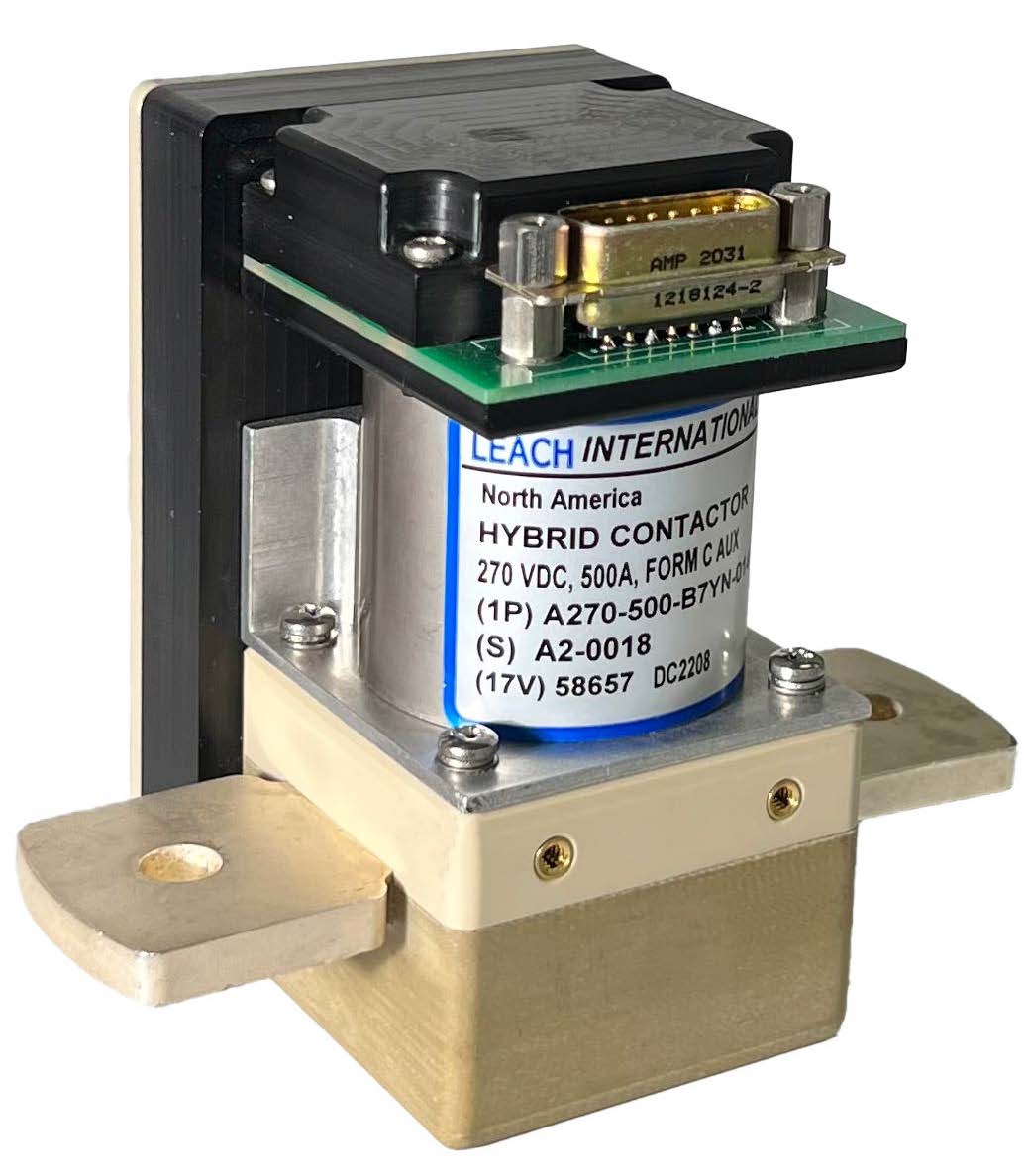

HYPERION-270
HYBRID CONTACTOR
Advanced Hybrid Technology for Durability
- Hot Switch 270 VDC @ 500 A
- 8x Rupture (4,000 A) of rated current
- Galvanic Isolation
- Qualified IAW MIL-PRF-6106
- Economizer Circuit
Designed for high reliability in military and commercial aerospace contactor and switchgear applications, ourhigh-power contactor, available in both 400 and 500 Amps, features advanced semiconductor technology for switching capabilities of 50,000 cycles.
This proprietary technology allows hot switching at rated currents with no risk of degradation of the contacts over the life cycle. The combination of an electromechanical contactor and a solid state switch, ideal for primary power switching, greatly reduces stress and damage caused by the arcing during switching. The result is prolonged life of the contactor, and reduced life-cycle cost.
TECHNICAL CHARACTERISTICS
- Contact arrangement SPST/NO
- Contacts rated at 28 VDC NOMINAL
- Weight: 2.0 lb (+/- 5%)
- Dimensions: 4.8 in x 3.1 in x 4.3 in
- Special units available upon request, including at operating current 1,000 Amp
ELECTRICAL RATING
| REQUIREMENT | POWER LOAD | CYCLES |
|---|---|---|
| RESISTIVE ELECTRICAL LIFE @400 A | CURRENT 400 A VOLTAGE 270 VDC | 50,000+ CYCLES |
| RESISTIVE ELECTRICAL LIFE @500 A | CURRENT 500 A VOLTAGE 270 VDC | 50,000+ CYCLES |
| OVERLOAD | CURRENT 1,000 A VOLTAGE 270 VDC | 1,000+ CYCLES |
| RUPTURE | CURRENT 2,000 A VOLTAGE 120 VDC | 20 CYCLES |
| RUPTURE | CURRENT 4,000 A VOLTAGE 28 VDC | 20 CYCLES |
| MECHANICAL LIFE | NO LOAD | 100,000 CYCLES |
PART NUMBERS
A270-400-B7YN-011 (400A)
A270-500-B7YN-014 (500A)
APPLICATIONS
- Generator Line Contactor (GLC)
- Main Line Contactor (MLC)
- Battery Contactor (BTC)
- Cross-Tie Contactor (XTIE)
- High Current Load Contactors
