The Backbone of Modern Aviation: Advanced Aerospace Power Distribution

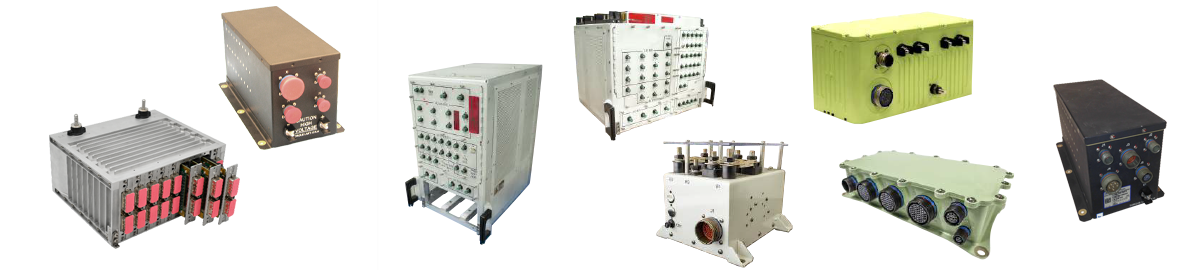

In the complex ecosystem of a modern aircraft, the Solid-State Power Distribution Unit (SSPDU) is far more than a simple circuit breaker panel; it is a sophisticated, intelligent nerve center essential for ensuring the safety, reliability, and efficiency of all onboard electrical systems. The evolution of these systems from traditional electromechanical designs to advanced solid-state electronics reflects a fundamental shift towards a “design-to-safety” philosophy, where every component is optimized to meet the stringent safety objectives of aerospace equipment specifications. This commitment to safety and reliability is underpinned by a suite of cutting-edge features that enable granular control, proactive diagnostics, and robust protection.
One of the most critical aspects of modern PDAs is their advanced diagnostic capability, primarily through comprehensive Built-in-Test (BIT) features. These include an Automatic Power On Built-in-Test (PBIT), which verifies system integrity at startup; a Continuous Built-in-Test (CBIT), which monitors performance in real-time throughout the flight; and an Initiated Built-in-Test (IBIT), which allows maintenance crews to run specific diagnostic routines. These BIT functions drastically reduce troubleshooting time and enhance overall equipment reliability, ensuring that potential issues are identified long before they can become critical failures.
Beyond diagnostics, PDAs employ a new generation of protection features to safeguard sensitive equipment. They are equipped with I2t over-current and short circuit protection (aka Parallel Arc Protection), complete with thermal memory that fully complies with, or exceeds, standard thermal circuit breaker trip curves. This precision ensures that faults are isolated quickly and effectively. Furthermore, these systems offer programmable trip curves and programmable time delays on operate or release, allowing engineers to tailor protection parameters to the specific needs of different loads.
For high-power systems, they include specialized soft current limiting and delayed turn on prevent system overload or enabling a smooth system recovery after an undervoltage event (power interruption/bus transfer).
For AC systems, they feature synchronization 2 or 3 phases operation, where a trip on any single phase will trip remaining phases’, preventing imbalances and potential damage. Additionally, the adoption of solid-state technology has led to innovations like Zero Voltage turn-on and Zero Current Turn-off for AC devices, which minimizes system transients.
The intelligence of these systems is further enhanced by their ability to communicate and manage power dynamically. A wide array of communication buses—such as ARINC 429, CAN, RS422/485, MIL-STD-1553, and Ethernet—facilitates seamless communication with the flight deck, central aircraft computers, and other equipment. This connectivity enables advanced load reporting, diagnostics, and system management, allowing for crucial functions like load shedding in emergency situations, and soft start for specific loads (such as lights/motors) to prolong their lifespan and reduce Power transient on the Power Bus.
In conclusion, modern aerospace Power Distribution Assemblies are a testament to the pursuit of safety and efficiency in aviation. By integrating advanced diagnostic tools, precise and customizable protection, intelligent load management, and robust communication protocols, these systems have evolved into sophisticated and indispensable components. They are the silent sentinels of the aircraft’s electrical system, ensuring that power is not only delivered but also managed with the utmost intelligence and reliability, ultimately contributing to a safer and more dependable flying experience for all.
