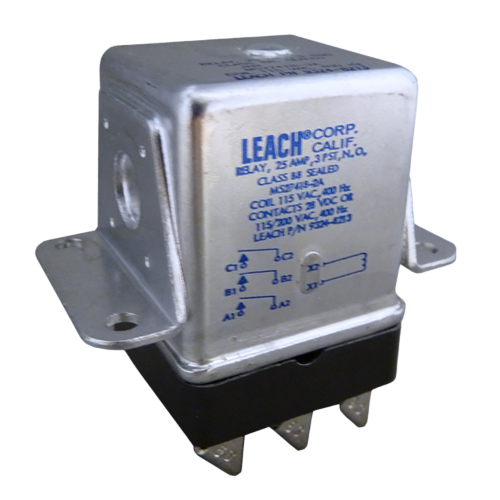

9324 Series Relay

9324 Series Relays are 3PST, non-latching relays rated to 25 amps, available in both AC and DC configurations. They’re used primarily for aerospace and military applications.

This relay is specially designed to qualify to MIL-PRF-6106 standards.

50,000 minimum operating cycles at rated load
200,000 minimum operating cycles at 25% rated load

Sealing Type: Hermetic

Category: Relay Industries: Commercial Aviation, Fighter Aircraft, Ground Vehicles, Marine Craft, Military Aircraft

Product Characteristics
Supporting Documents

Product Characteristics

Contact Voltage	115/200 Vac,120/208 Vac,28 Vdc,400 Vac
Coil Frequency	50/400
Coil Voltage (DC)	28, 115 Vac
Contact Frequency (Hz)	400 (115/200 Vac),60 (120/208 Vac & 400 Vac)
Current (Amps)	25
Contact Arrangement	3PST
Style	Non-latching
Max Dimensions (inches)	1.46 x 2.50 x 2.45
Sealing Type	Hermetic
Weight	0.8 lbs max
